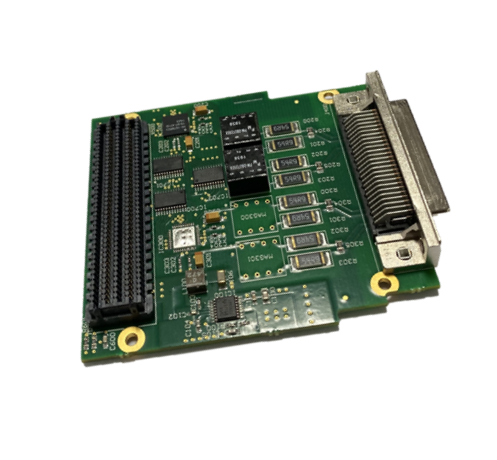

NES-FMC-1553 MIL-STD1553 Module BC/RT/MT up to 4 Channels. Click here to download the PDF version |

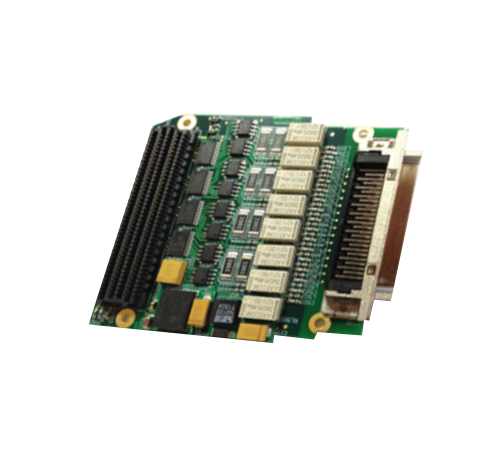

NES-FMC-A429 FMC Arinc 429 Module 4Receive/4Transmit Channels. Click here to download the PDF version |

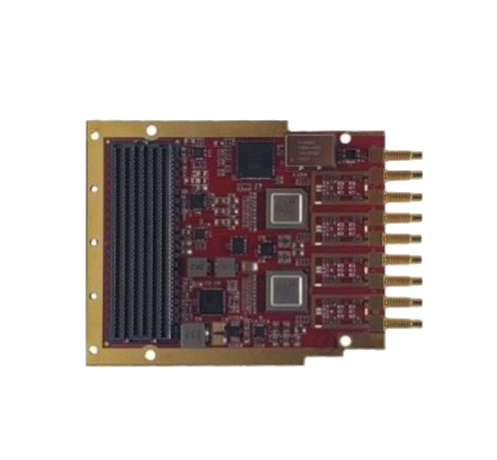

NES-FMC-ADC FMC ADC 4 channels 14 BITS 100 MSPS. |
NES-FMC-CS6 FMC Carrier board 69mm X59 mm with Xilinx Spartan-6 (XC6SLX16-2FGG) High-speed USB 2.0 interface for configuration and communication, 128-MByte DDR2 (Micron MT47H64M16HR), Self-powered from a single 5-volt supply, Four FPGA-attached LEDs, Single FMC low-pin-count connector with Vadj support, JTAG header, Full Front Panel virtual control panel support. Click here to download the PDF version |

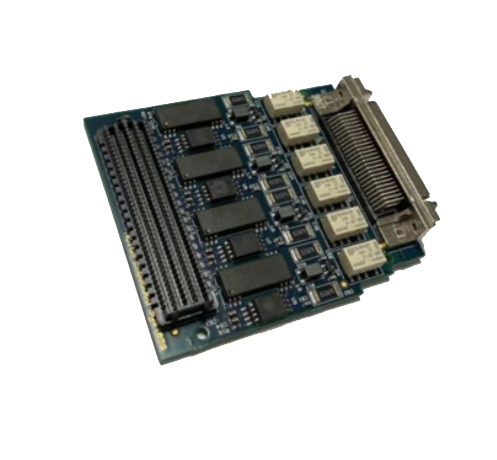

NES-FMC-CAN FMC Mezzanine module 2 or 4 CANbus channels with loopback features. Click here to download the PDF version |

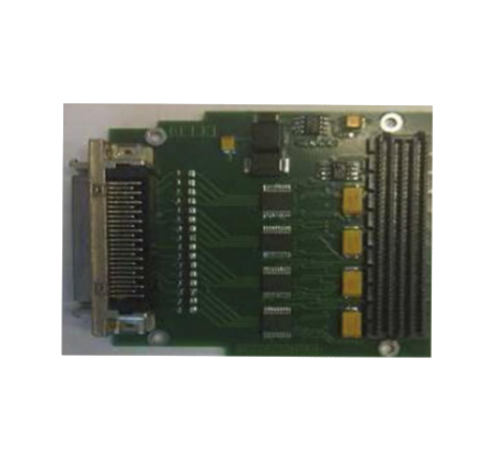

NES-FMC-SER FMC Mezzanine module 4 or 8 channels configurable RS232/422/485. Click here to download the PDF version |
NES-VESTA Stand alone carrier 136mmX80mm based on Altera Cyclone III FPGA with 1 FMC slot, 1 USB port, 1 Serial port RS232 and 8 users LED's. |
NES-PCIe-MFIO PCIe KINTEX7 FPGA board. Click here to download the PDF version |
NES-VMEC2FMC VMEbus FMC Carrier board with dual Spartan 6 FPGA. Click here to download the PDF version |
